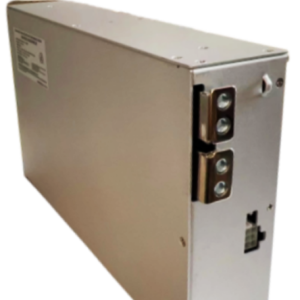

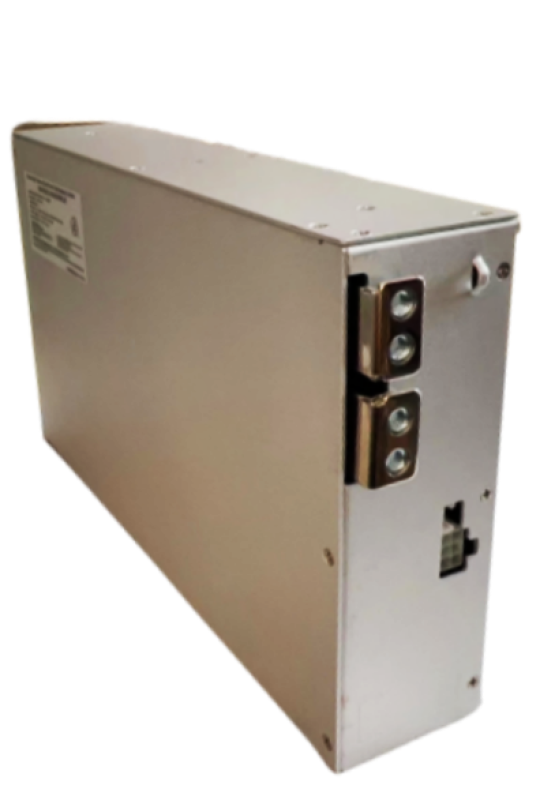

APW111721c,17V-21.6V,RSPri_V1.25，EMC

APW111721c,17V-21.6V,RSPri_V1.25，EMC Note：
Please update your ANTMINER with the newest firmware accordingly after replacing the power supply.
*If you need purchase these materials, please contact us. For more operation guidance please refer to this article《APW11 PSU Replacement Instructions》 Product Glance Out1 DC Voltage
17V-21.6V Rated Current(380V input)
300A Rated Power(380Vinput)
6500W Ripple & Noise
<1% Line Regulation
<1% Load Regulation
<1% Setup Time
<5S Short Circuit Protection
>10mS Detailed Characteristics Out2 DC Voltage
12.3V Rated Current(220 V input)
1A Ripple & Noise
<1% Voltage Accuracy
12.2V—12.4V Line Regulation
<1% Load Regulation
<1% Setup Time
<5S Short Circuit Protection
>10mS Input Voltage Range
380-415V AC Frequency Range
50~60 Hz Power Factor
>0.99(full load) Leakage Current
<1.5mA（380V 50Hz） Protection Low-voltage Input
< 304V AC Output Short Circuit
Yes Overheat Protection
Yes Over-current Output
300A-350A Environment Operating Temperature
-20-45℃ Operating Humidity
20%-90%RH（non–condensing） Altitude
< 2000m Structure Dimensions
320mm*179mm*63mm Net Weight
5kg Cooling System
Water cooling Inlet temperature
20-35 ℃ Water flow rate
8L/min Water pressure
<3.5 BAR Purchasing Guidelines

NOTES
1. One account can purchase a maximum of 500 units.
2. The shipping costs, cutsoms charges, and taxes(if any) are not included in the retail price shown above.
3. After an order has been submitted, a request to cancel the order, refund any part of the ordered amount or change the ordered item(s) to different item(s) or different batch(es) will not be entertained by BITMAIN.
4. The pictures shown are for reference only; the final shipment version shall prevail.

SHIPPING DETAILS
1. The products are made in China. If shipping to the U.S., customers will need to pay tariff.
2. Shipments will be scheduled on a first-paid-first-ship basis for orders on which BITMAIN has received full payment.
3. You are responsible for any customs delays or returned shipments due to a lack of proper documentation. It’s highly recommended to be aware of local customs clearance policies and to prepare all customs documentation ahead of time to avoid any customs clearance delays or unexpected costs.
