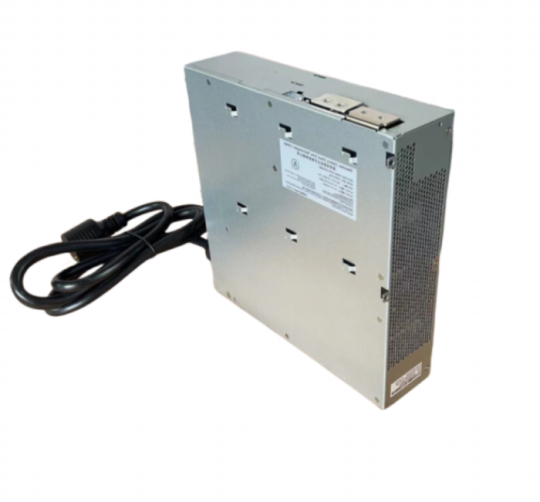

APW121215g_12V-15V_V1.21 EMC

APW121215g_12V-15V_V1.21 EMC Note:
This power supply is version g.
You can check the exact version at the product tag which is on the side of the power supply and find the newest firmware accordingly through Mining Now Support.
There are many versions of this power supply, it is recommended to consult customer service before purchasing>>Contact now Product Glance Out1 DC Voltage
12V-15V Rated Current(220V input)
208A (when 15V can upto 233A~240A) Ripple & Noise
<1% Line Regulation
<1% Load Regulation
<1% Setup Time
<2S Short Circuit Protection
>10mS Detailed Characteristics Out2 DC Voltage
12.3V Rated Current(220 V input)
15A Ripple & Noise
<1% Voltage Accuracy
12.2V—12.4V Line Regulation
<1% Load Regulation
<1% Setup Time
<2S Short Circuit Protection
>10mS Input Voltage Range
200-240V AC Frequency Range
47-63Hz Power Factor
>0.99(full load) Leakage Current
<1.5mA（220V 50Hz） Protection Low-voltage Input
80-89V AC Output Short Circuit
Yes Overheat Protection
Yes Over-current Output
291A-350A （protection value varies under different voltage） Environment Operating Temperature
-20-45℃ Operating Humidity
20%-90%RH（non–condensing） Altitude
< 2000m Structure Dimensions
254.6mm*251.6mm*63mm Net Weight
3.6kg Cooling System
Forced‐air cooling Noise
45dBA Purchasing Guidelines
