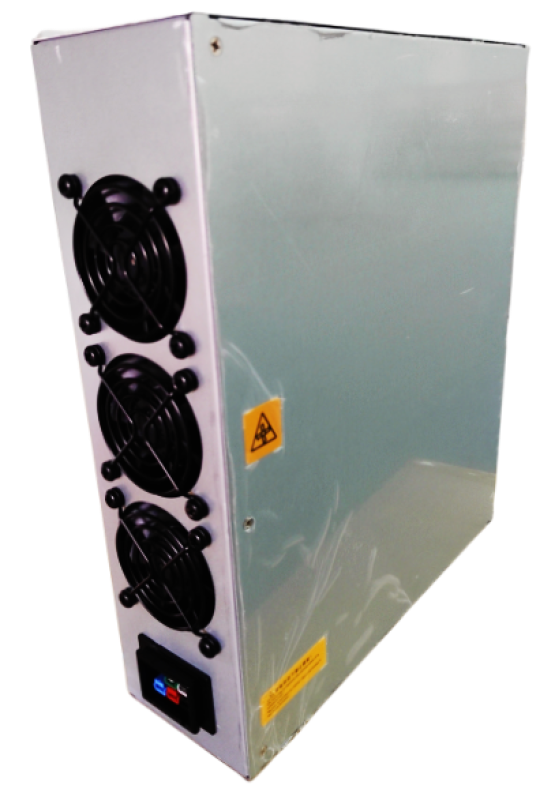

APW11A1216-1a,12V-16V,V1.1,EMC

APW11A1216-1a,12V-16V,V1.1,EMC Note:
You can check the exact version at the product tag which is on the side of the power supply and find the newest firmware accordingly through Mining Now Support.
There are many versions of this power supply, it is recommended to consult customer service before purchasing>>Contact now OUT1
DC Voltage
12V-16V Rated current (three-phase 380V input)
Rated current (three-phase 380V input) Ripple & Noise
<1% Source adjustment rate
<1% Load Regulation
<1% Start-up and rise time
<6S Power-off retention time
>10mS OUT2
DC Voltage
12.3V Rated current (three-phase 380V input)
21A Ripple & Noise
<1% Voltage Accuracy
12.2V—12.4V Source adjustment rate
<1% Load Regulation
<1% Start-up and rise time
<5S Power-off retention time
>10mS Input
Voltage Range
380–415V AC Frequency Range
50-60Hz Power Factor
>0.99(full load) Leakage Current
<1.5mA（380V 50Hz） Protection
Input undervoltage protection value
333V AC Output Short Circuit
Yes Over-temperature protection
Yes Output overcurrent protection value
408A–453A （protection value varies under different voltage） Environment
Operating Temperature
-20-45℃ Operating Humidity
20%-90%RH（non-­condensing） Altitude
< 2000m Structure
Dimensions
290mm*250mm*80mm Net Weight
6.4Kg Cooling method
Forced air cooling Noise
55dB Purchasing Guidelines

NOTES
1. One account can purchase a maximum of 500 units.
2. The shipping costs, cutsoms charges, and taxes(if any) are not included in the retail price shown above.
3. After an order has been submitted, a request to cancel the order, refund any part of the ordered amount or change the ordered item(s) to different item(s) or different batch(es) will not be entertained by BITMAIN.
4. The pictures shown are for reference only; the final shipment version shall prevail.

SHIPPING DETAILS
1. The products are made in China. If shipping to the U.S., customers will need to pay tariff.
2. Shipments will be scheduled on a first-paid-first-ship basis for orders on which BITMAIN has received full payment.
3. You are responsible for any customs delays or returned shipments due to a lack of proper documentation. It’s highly recommended to be aware of local customs clearance policies and to prepare all customs documentation ahead of time to avoid any customs clearance delays or unexpected costs.
