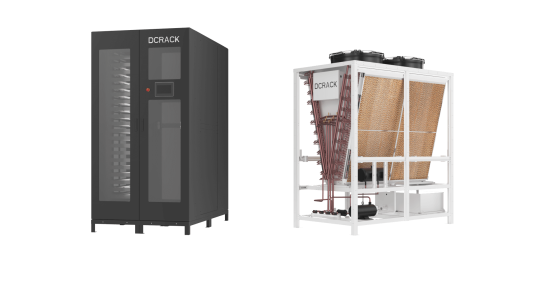

DCRACK

DCRACK | Specifications

  Product Glance Value Model
DCRACK Version
V1 Capacity
47U Maximum load,kW
36 PUE@25℃ ambient, 25℃ air supply(1-1)
1.17 Supply air temperature for classic server, ℃

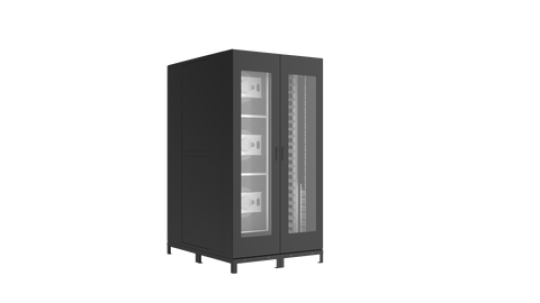

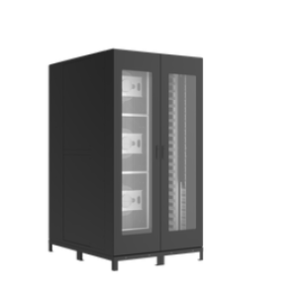

18~27℃ Detailed Characteristics Value Part 1: Server Cabinet Value Hardware Configuration Size (Length*Width*Height), mm (without package)
1,600*1,200*2,350 Size (Length*Width*Height), mm (with package)
1,720*1,300*2,400 Net weight, kg (without package)
668 Gross weight, kg (with package)
686 Network connection mode
RJ45 Ethernet 10/100M Power Supply Power supply AC Input voltage, Volt(2-1)
380~415 AC Power supply AC Input Frequency Range, Hz
50~60 Maximum Power supply AC Input current, Amp(2-2)
63 Fan Rated power, W
2,500 Noise, dBA@1m
85 Size (Length*Width* Thickness), mm
378*378*375 Number of fans

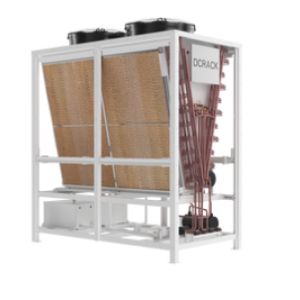

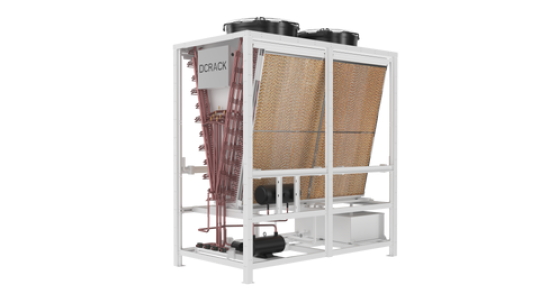

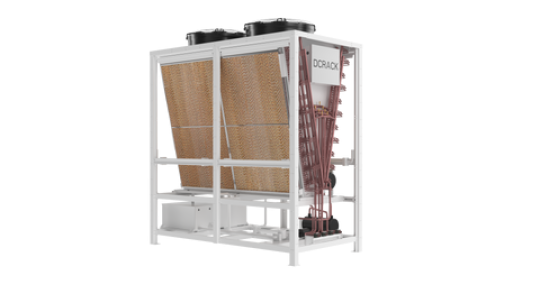

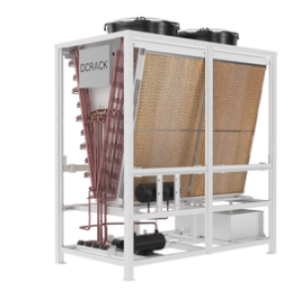

3 Part 2: External Cooler
Value Hardware Configuration Size (Length*Width*Height), mm (without package)
1,896*1,026*2,180 Size (Length*Width*Height), mm (with package)
2,000*1,130*2,360 Net weight, kg (without package)
396 Gross weight, kg (with package)
414 Power Supply Power supply AC Input voltage, Volt(2-1)
380~415V AC Power supply AC Input Frequency Range, Hz
50~60 Maximum Power supply AC Input current, Amp(2-2)
63 Heat pump Rated power, kW
8.5 COP (typical)
4.75 Refrigerant
R410A Fan Rated power, kW
1.85 Noise, dBA@1m
82 Size (Length*Width* Thickness), mm
805*805*211 Number of fans
2 Refrigerant pump Rated power, W
550 Flow rate, m3/h
1 Pump head, m
48 Size (Length*Width* Height), mm
420*152*202 Environment requirements
Value Ambient temperature, °C
-20~45℃ Installation distance (max), m(2-3)
50 Storage temperature, °C
-20~70 Operation humidity(non-condensing), RH
10~90% Notes:
(1-1) The typical PUE is tested at 25℃ ambient and 25 ℃ air supply, without water curtain.
(2-1) Caution: Wrong input voltage may cause server damaged.
(2-2) Three-phase AC input.
(2-3) The distance between server cabinet and external cooler. | Purchasing Guidelines

1. The pictures shown are for reference only; the final shipment version shall prevail.
2. Contact Customer Service Robot to review the shipping cost.

| Shipping Details

1. Shipments will be scheduled on a first-paid-first-ship basis for orders on which BITMAIN has received full payment.
2. You are responsible for any customs delays or returned shipments due to a lack of proper documentation. It’s highly recommended to be aware of local customs clearance policies and prepare all customs documentation ahead of time to avoid delays or unexpected costs.
3. Click here to download Certificates of Conformity and find additional information on customs clearance for BITMAIN products. | Warranty

1. A 365-day warranty period is provided starting from the shipping date. BITMAIN will cover shipping costs when shipping a replacement unit within the warranty period.
2. The warranty only applies to the original purchaser who purchased the machine directly from BITMAIN. Once the miner is resold, warranty coverage becomes the responsibility of the re-seller.
3. If the user fails to use the product per the given instructions, specifications, and conditions provided or changes the function settings of the unit without BITMAIN’s prior consent, BITMAIN will not be liable for any damage arising therefrom.
4. Click here for a complete list of the Terms & Conditions that apply to all orders placed on https://mining-now.xyz/support/.
