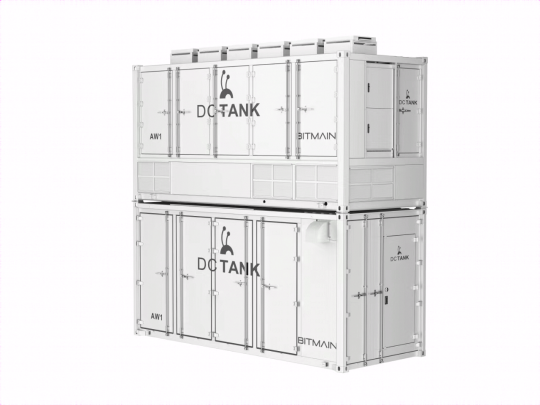

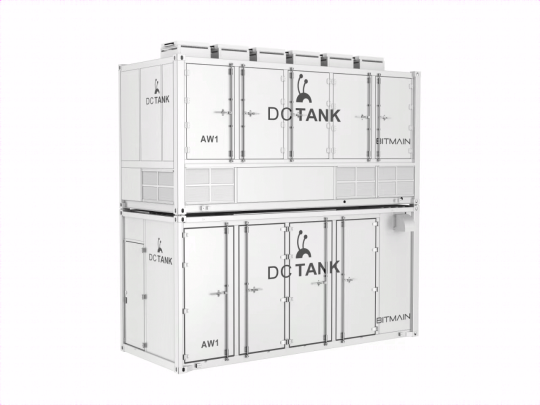

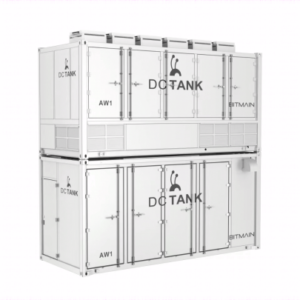

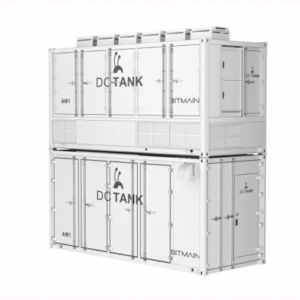

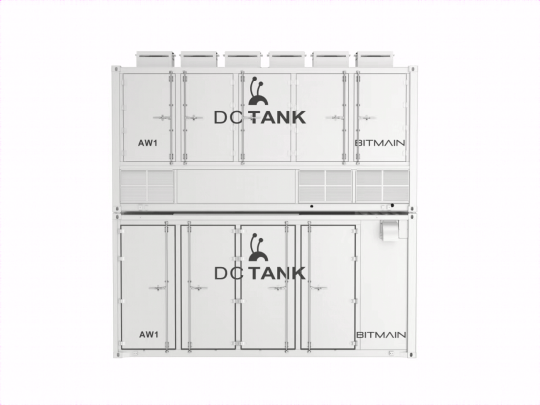

DCTANK AW1

DCTANK AW1 | Specifications Specification Details For DCTANK AW1 Product Overview
Value Model
DCTANK AW1 Dimensions (l*w*h), mm
6058×2438×2896 Server capacity, U
376 Container certification
CCS Safety certification
NFPA 79:2024
UL 508A:2018 R7.22
CSA C22.2 No. 301:23
ANSI/ISO 12100:2012
EN ISO 12100:2010
EN 60204-1:2018 Input Voltage and Frequency
400V±5% 50/60Hz Total IT load, KW
120 Detailed Characteristics
Value Shipping weight, T
4.6 Main Switch of Power Distribution Cabinets(A)
250×2 Rated current, A
≤405 Number of server cabinets
8 Single cabinet capacity, U
47 Single cabinet power density, KW
15 Inlet cable
The incoming cable requires two three-phase, five-wire cables, each with the following requirements:
L1 single core cable 350kcMil（185mm²）
L2 single core cable  350kcMil（185mm²）
L3 single core cable  350kcMil（185mm²）
N Single-core cable  250kcMil（127mm²）
PE single-core cable  250kcMil（127mm²）
Specification Details For Cooling Tower Product Overview
Value Dimensions (l*w*h), mm
6058×2438×2896 PUE(Power usage effectiveness)@ 25℃ ambient temperature
1.11 Rated Cooling Capacity, kW
120 Container certification
CCS Motor Rated Voltage and Frequency
AV 400V±5%; 50/60Hz   Detailed Characteristics
Value Shipping Weight, T
5.8 Operating Weight, T
7.8 Supply Air Temperature, ℃
25 Return Air Temperature ,˚C
38 Water Consumption @ 25˚C, m3/h
0.2 Noise Level @ 25˚C, 15m, dBA
75 Operating Temperature ,˚C
-35~+40 Operation Humidity, RH
20%~80% | Points For Attention

  1
The equipment must be placed on a level surface with horizontal alignment within ±1 degree. 2
The ground must be hardened and stable enough to support a minimum load of 14 tons. 3
A 10-ton crane is required to unload the DCTANK equipment and cooling towers. 4
The delivery of DCTANK does not include additional items such as stairs, transformers, cables, 5
At least 5 meters of air intake space around the machine. 6
Altitude: ≤ 3000 meters. If the altitude exceeds 1000 meters, transformers and switches should be derated. | Purchasing Guidelines

The pictures shown are for reference only; the final shipment version shall prevail.

| Shipping Details

1. Shipments will be scheduled on a first-paid-first-ship basis for orders on which BITMAIN has received full payment.
2. You are responsible for any customs delays or returned shipments resulting from inadequate documentation. It is highly recommended that you familiarize yourself with local customs clearance policies and prepare all necessary customs documentation in advance to avoid delays or unexpected costs.
3. Click here to download Certificates of Conformity and find additional information on customs clearance for BITMAIN products. | Warranty

1. A 365-day warranty period is provided starting from the shipping date. BITMAIN will cover shipping costs when shipping a replacement unit within the warranty period.
2. The warranty only applies to the original purchaser who purchased the machine directly from BITMAIN. Once the miner is resold, warranty coverage becomes the responsibility of the re-seller.
3. If the user fails to use the product per the given instructions, specifications, and conditions provided or changes the function settings of the unit without BITMAIN’s prior consent, BITMAIN will not be liable for any damage arising therefrom.
