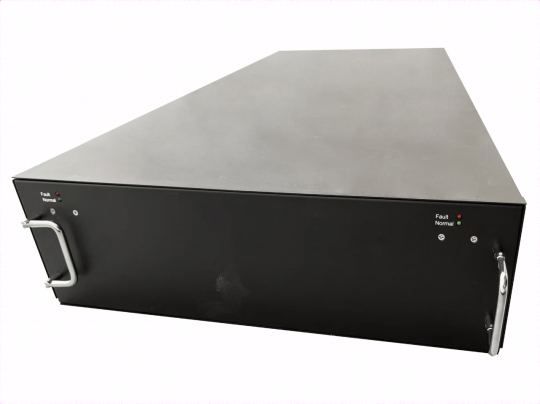

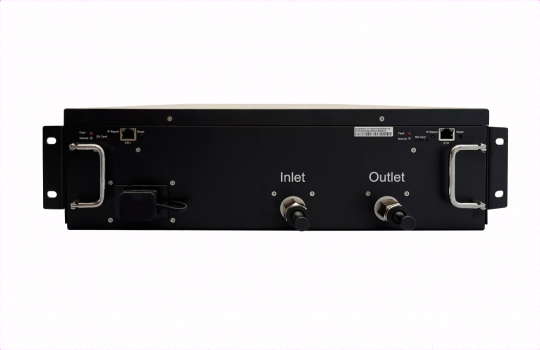

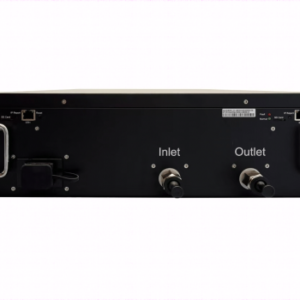

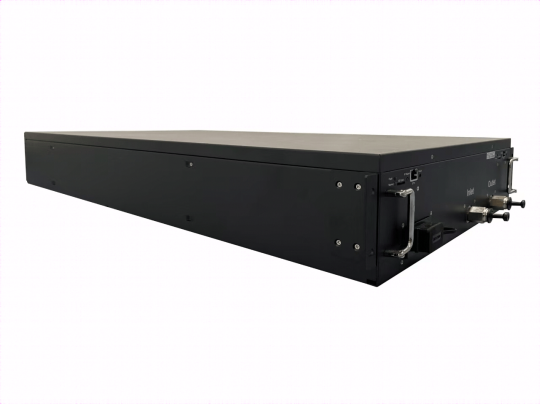

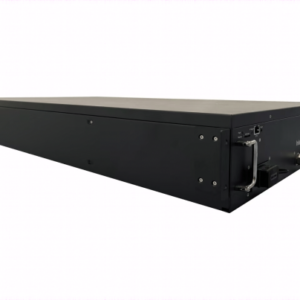

Bitcoin Miner U3S21EXPH

Bitcoin Miner U3S21EXPH For Sales | Performance Curves 1. Hashrate vs. Inlet Coolant Temperature

2. Power Efficiency vs. Inlet Coolant Temperature

(1-1) The hashrate value, and power efficiency on wall are all typical values. The actual hashrate value fluctuates by ±3%, and the actual power efficiency on wall fluctuate by ±5%. | Specifications Product Glance
Value Model
U3S21EXPH Sub
860T Version
10 Crypto algorithm/coins
SHA256|BTC/BCH/BSV Typical hashrate, TH/s(1-1)
860 Power on wall @35℃(1-2), Watt(1-1)
11,180 Power efficiency on wall@35℃(1-2), J/T(1-1)
13.0   Detailed Characteristics
Value Power Supply Phase
3 Input voltage, Volt(2-1)
380~415 Input frequency range, Hz
50~60 Input max current, Amp
24 Power port
LP34 Hardware Configuration Networking connection mode
RJ45 Ethernet 10/100M Server size (length*width*height, w/o package), mm
900*482.6*130 Server size (length*width*height, with package), mm
1,150*640*260 Net weight, kg
42.7 Gross weight, kg
48.6 Environment Requirements Inlet coolant temperature, °C
20~50 Coolant flow, L/min
16.0~20.0 Coolant pressure, bar
≤3.5 Working coolant(3-2)
Antifreeze/Pure water/Deionized water Coolant pH value
Antifreeze: 7.0~9.0
Pure water: 6.5~7.5
Deionized water：8.5~9.5 Diameter of coolant pipe connector, mm
OD14 Storage temperature, °C
-20~70 Operation humidity(non-condensing), RH
10~90% Notes:
(1-1) The hashrate value, power on wall, and power efficiency on wall are all typical values. The actual hashrate value fluctuates by ±3%, and the actual power on wall and power efficiency on wall fluctuate by ±5%.
(1-2) Inlet coolant temperature.
(2-1) Caution: Wrong input voltage may cause server damaged.
(2-2) For detailed working coolant use and maintenance instructions, please refer to “ANTSPACE HK3 Water Cooling Container & Dry-Wet Tower Product Manual“, Chapter 9, Article 3, Point 6, “Maintenance of Coolant”! | Purchasing Guidelines

1. The shipping costs, customs charges, and taxes(if any) are not included in the retail price shown above.
2. After an order has been submitted, a request to cancel the order, refund any part of the ordered amount or change the ordered item(s) to different item(s) or different batch(es) will not be entertained by BITMAIN.
3. The pictures shown are for reference only; the final shipment version shall prevail.

| Shipping Details

1. Shipments will be scheduled on a first-paid-first-ship basis for orders on which BITMAIN has received full payment.
2. You are responsible for any customs delays or returned shipments due to a lack of proper documentation. It’s highly recommended to be aware of local customs clearance policies and to prepare all customs documentation ahead of time to avoid any customs clearance delays or unexpected costs.

  | Warranty

1. A 365-day warranty is provided starting from the shipping date. BITMAIN will cover shipping costs when shipping a replacement unit within the warranty period.
2. The warranty only applies to the original purchaser who purchased the machine directly from BITMAIN. Once the miner is resold, warranty coverage becomes the responsibility of the re-seller.
3. If the user fails to use the product per the given instructions, specifications, and conditions provided or changes the function settings of the unit without BITMAIN’s prior consent, BITMAIN will not be liable for any damage arising therefrom.
