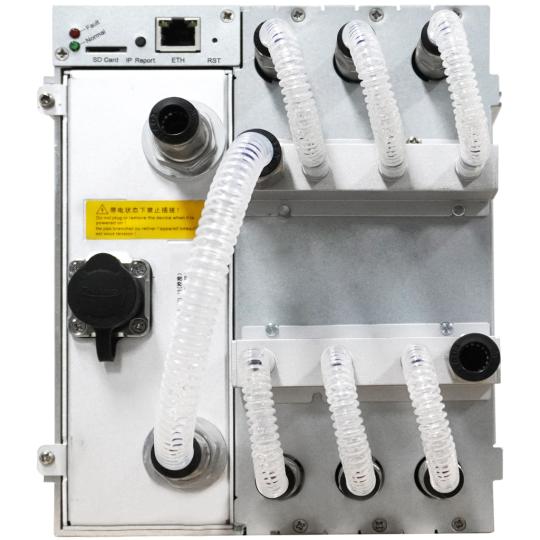

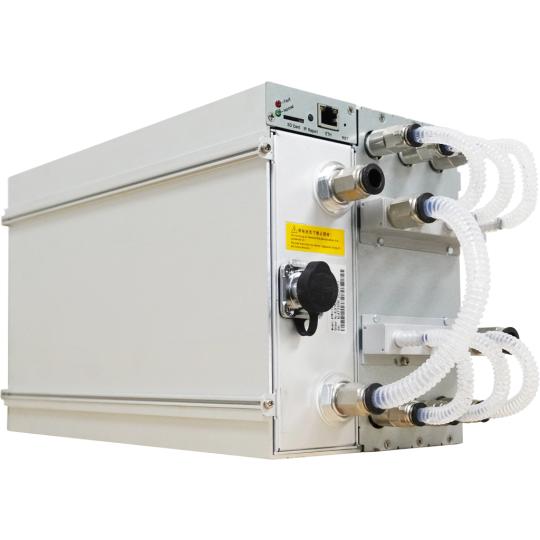

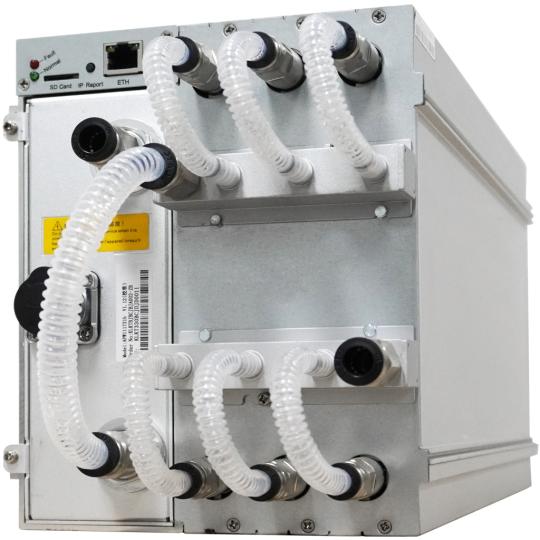

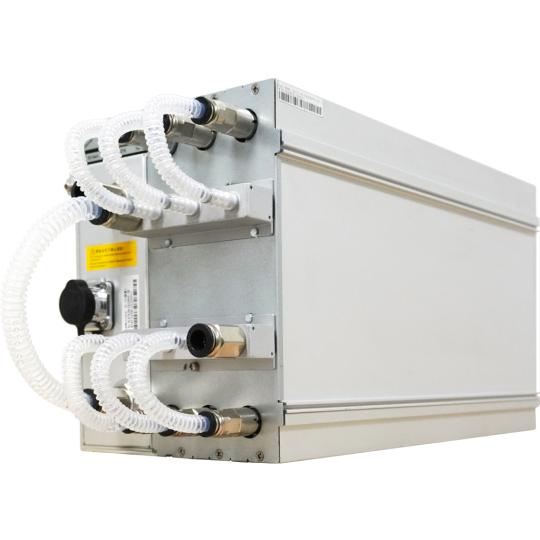

Bitcoin Miner S21e XP Hyd

Bitcoin Miner S21e XP Hyd For Sales | Performance Curve


1. Hashrate vs. Ambient Temperature

2. Power Efficiency vs. Ambient Temperature | Specifications

  Product Glance
Value Model
S21 XP Sub
270 Version
10 Crypto algorithm/coins
SHA256 | BTC/BCH/BSV Typical hashrate,TH/s(1-1)
270 Power on wall @25℃(1-2), Watt(1-1)
3645 Power efficiency on wall@25℃(1-2),J/TH(1-1)
13.5 Detailed Characteristics
Value Power supply Phase
1 Power supply AC input voltage(2-1) , Volt
220~277 Power supply AC input frequency range, Hz
50~60 Power supply AC  input current(2-2), Amp
20 Hardware Ronfiguration Network connection mode
RJ45 Ethernet 10/100M Server size (length*width*height, w/o package), mm
450*219*293 Server size (length*width*height, with package), mm
630*350*430 Net weight, kg
18.7 Gross weight, kg
21.5 Noise(2-3)@30℃, dBA
76 Max airflow(2-4), CFM
550 Environment Requirements Operation temperature, ℃
-20~45 Storage temperature, ℃
-20~70 Operation humidity(no condensation), RH
10%~90% Operation altitude(2-5), m
≤2000 Notes:
(1-1) The Hashrate value, Power on wall, and Power efficiency on wall are all typical values, The actual Hashrate value fluctuates by ±3%, and the actual Power on wall and Power efficiency on wall fluctuate by ±5%.
(1-2) Inlet air temperature.
(2-1) Caution: Wrong input voltage may probably cause server damaged.
(2-2) Single-phase AC input 20A.
(2-3) Max condition: Fan is under max RPM(rotation per minute).
(2-4) When the server is dusty or the environment is poorly ventilated, the server airflow will reduce.
(2-5) When the server is used at an altitude from 900m to 2000m, the highest operating temperature decreases by 1℃ for every increase of 300m. | Purchasing Guidelines

1. Shipments will be scheduled on a first-paid-first-ship basis for orders on which BITMAIN has received full payment.
2. You are responsible for any customs delays or returned shipments due to a lack of proper documentation. It’s highly recommended to be aware of local customs clearance policies and prepare all customs documentation ahead of time to avoid delays or unexpected costs.
  | Warranty

1. A 365-day warranty is provided starting from the shipping date. BITMAIN will cover shipping costs when shipping a replacement unit within the warranty period.
2. The warranty only applies to the original purchaser who purchased the machine directly from BITMAIN. Once the miner is resold, warranty coverage becomes the responsibility of the re-seller.
3. If the user fails to use the product per the given instructions, specifications, and conditions provided or changes the function settings of the unit without BITMAIN’s prior consent, BITMAIN will not be liable for any damage arising therefrom.
