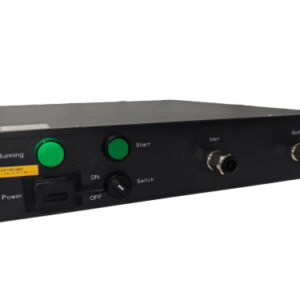

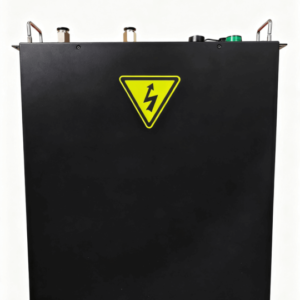

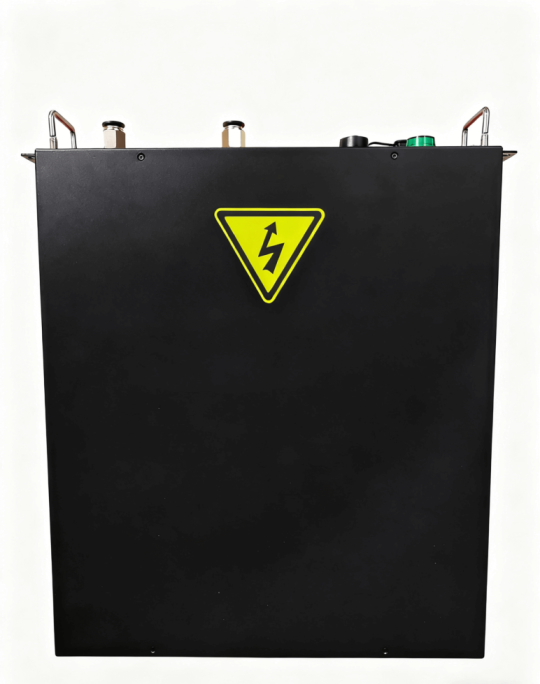

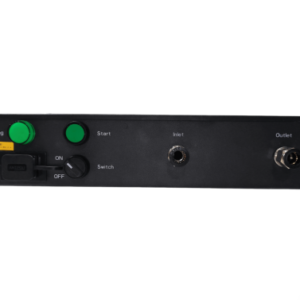

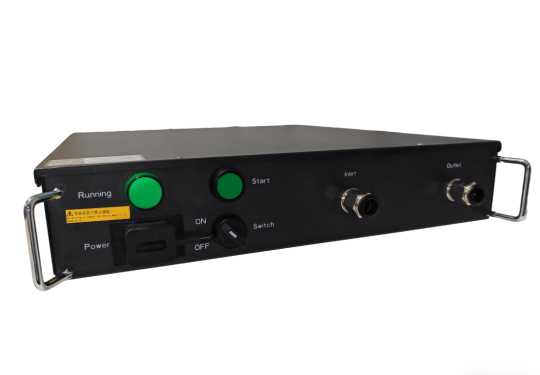

AFC03-PTC（20）

AFC03-PTC（20） | Specifications Product Glance
Value Model
AFC03-PTC Dimensions, mm
508*445*87 Input Power
400V±5%, 50/60Hz, 3P Rated  Power, kW
10 Max Current, A
≤26 Color
RAL9005   Detailed Characteristics
Value Power Supply Voltage Range, V
380~415 Frequency Range, Hz
50-60 Phase
3 Power Connector
PA45-6 Heating Medium
Antifreeze/Pure Water/Deionized water Diameter of Inlet Pipe, mm
OD14 Protection Overheat Protection
Yes Prevent Dry Heating Protection
Yes Auto.Shutdown Temperature(Inlet), ℃
30 Auto.Shutdown Temperature(Outlet), ℃
50 Environment Operating Temperature, ℃
-40-50 Operation humidity, RH
10~90% Storage Temperature, ℃
-40-70 Altitude, m
< 2000 Structure Dimensions, mm
508*445*87 Net Weight, kg
14 Gross Weight, kg
17.5 Water flow rate, L/min
≥16 Head Loss@16L/min, kPa
≤20 Purchasing Guidelines
