Immersion Cooling Kit C6 Support 6 Asic Miners for Crypto Mining| BT-MINERS

C6 Tank
C6 Drycooer (24kW@35°C)
FHC01 Coolant 200L China
Smart PDU 6C19 Single / 3-Phase

The Immersion Cooling Kit C6 is engineered to support and efficiently cool up to six ASIC miners simultaneously, ensuring optimal performance and extended hardware lifespan.

Specifications

IMMERSION MINING KIT C6——Designed for Medium Mining

Support 6 ASICs inside (Multiple models of Antminer, Whatsminer and Avalon) | Smart Adjustment

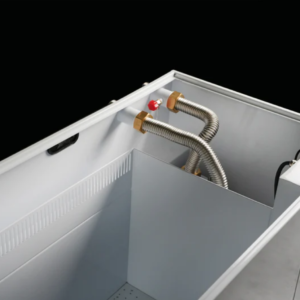

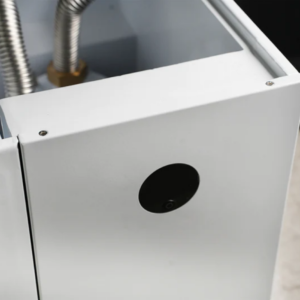

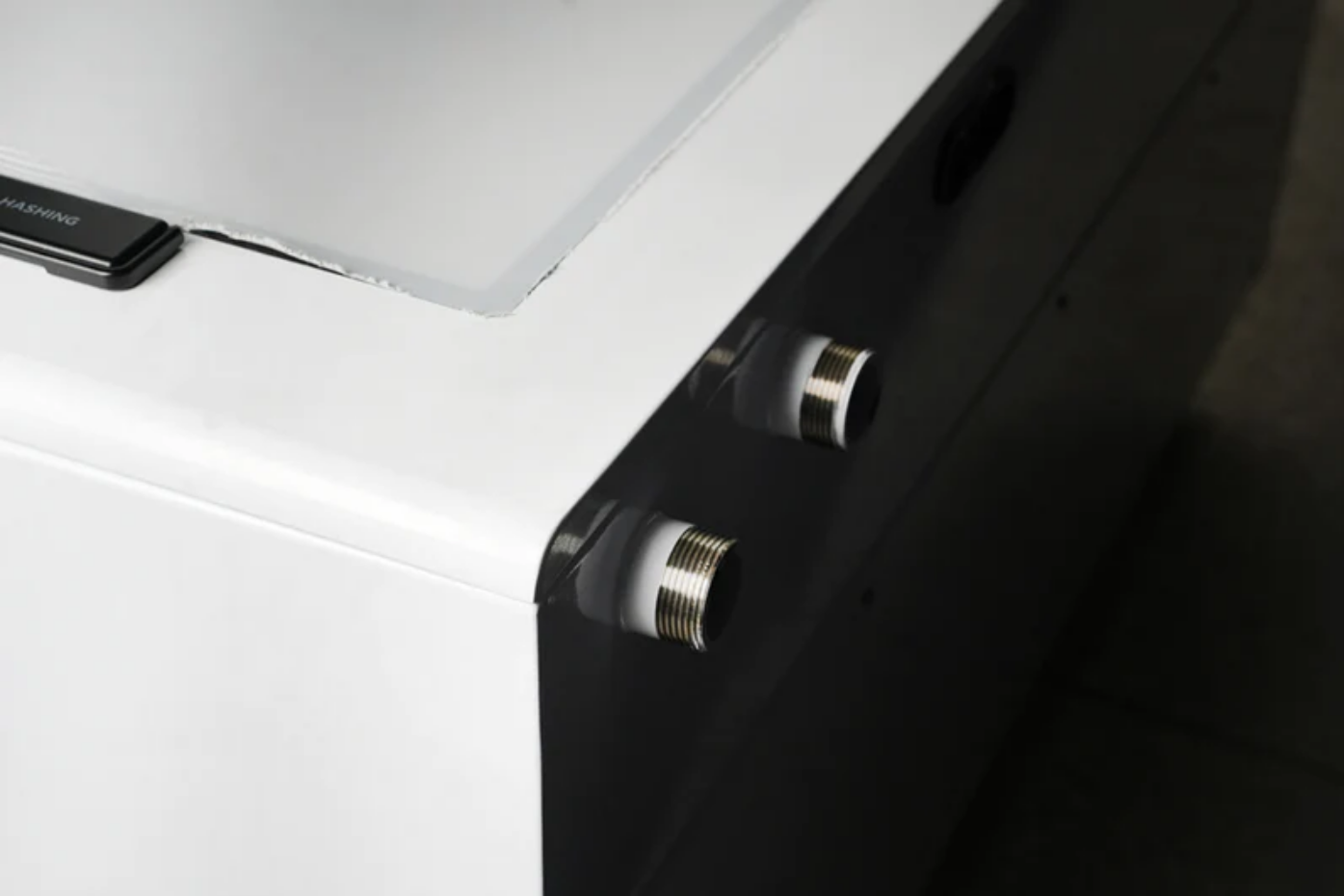

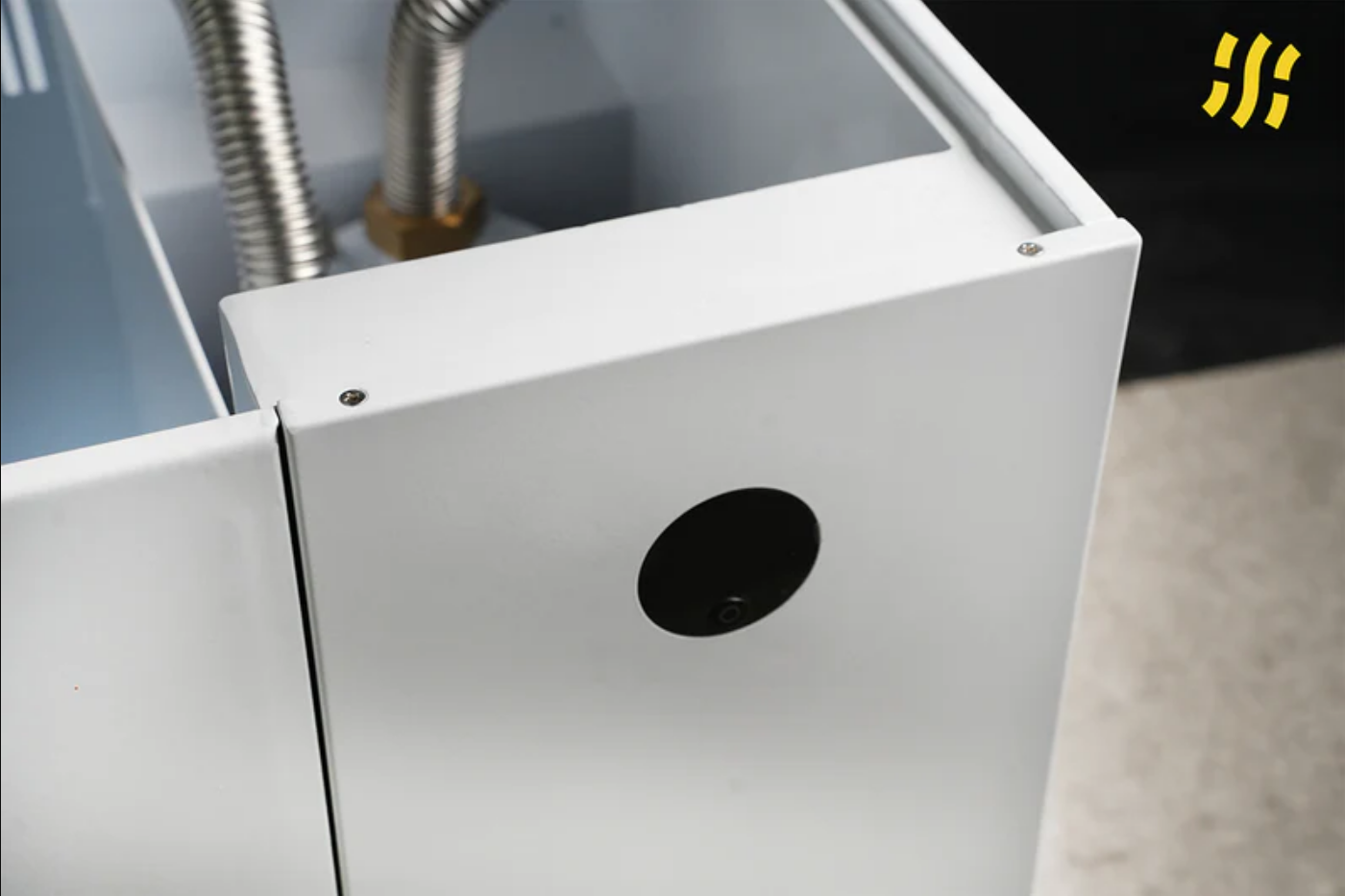

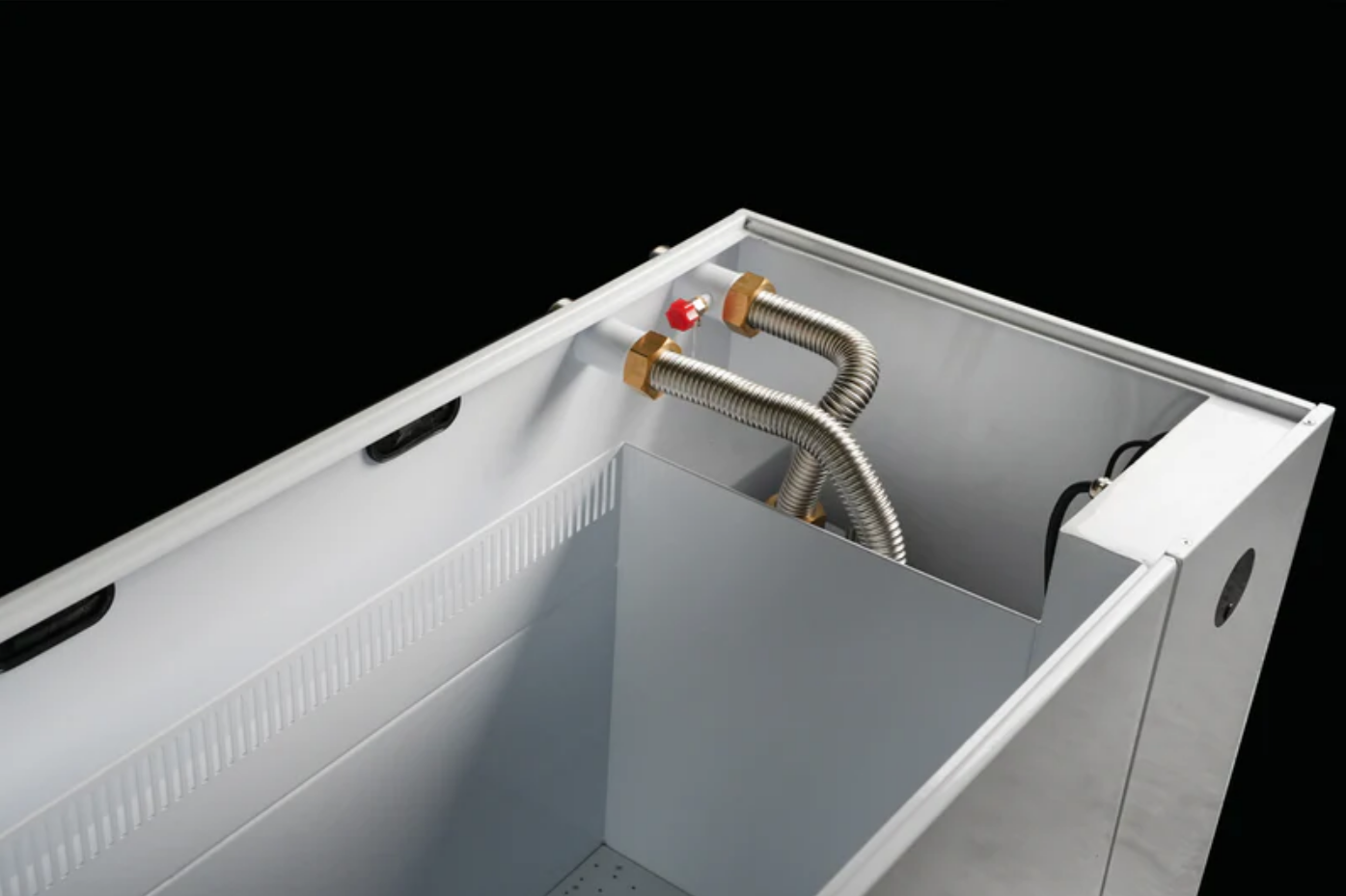

1. C6 Tank

Outsize	1185(L)530(W)760(H)mm
Insize	912(L)404(W)355(H)mm
G.W.	110kg
Coolant Volume	200L
Cycle Mode	Single Loop
Input Voltage	Single-Phase 200-240V 50/60Hz
Power Usage (Max)	800-1100W
Noise	45dB(A)@10m
Flow	90L/min
Qty of Miner(s)	6S19/S21 8M50/M60
PDU	Single-phase: 220V 125A 6C19 Three-phase: 380V 63A 6C19

2. C6 Dry Cooler

Outer Size	1680(L)400(W)1015(H)mm
Input Voltage	Single-Phase 200-240V 50/60Hz
Power Usage (Max)	10-1400W(220V 50Hz)
G.W.	110kg
Cooling Capacity	24kW@35℃
Fluid In / Out	63-53°C
Electrical Interface	C14 *1
Fan Type	EC Fan
Noise	65dB(A)@10m (MAX)
